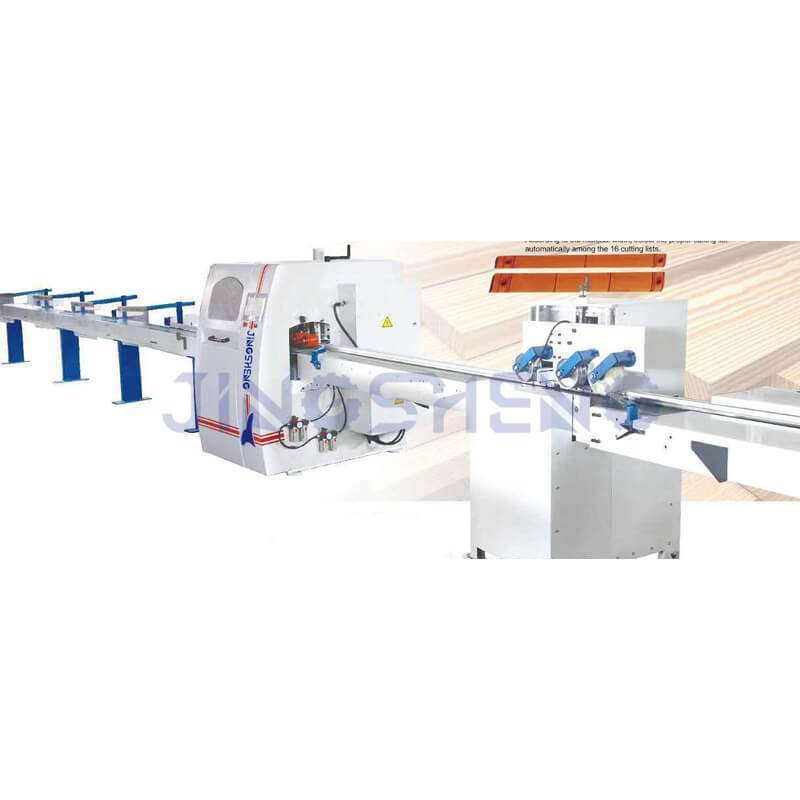

Optimization Cut Off Saw MJD344

Machine features and functions:

MJD344 cross-optimized cutting saw machine is currently the best equipment for wood cross-section processing technology:

Stable and efficient: The lifting saw is controlled by a servo motor, with high efficiency and good stability, which can reach 4 times the efficiency of manual sawing.
High precision: High-precision sensors and world-class pneumatic components are used to ensure that the sawing is not bad, which can save materials.
Optimizing material selection: Using advanced control system, through high-speed calculation to optimize sawing of wood according to work requirements, it not only improves the grade of wood but also increases the yield of materials.

Machine System Configuration:

Schneider Electric, using the combination of electric control and manual control to operate, easy to operate.
The electrical system power supply is: 380V50HZ. The control circuit is DC 24V to ensure the safety of the circuit. The entire system is assembled with Schneider products, has undergone rigorous system testing, and has undergone multiple inspections to ensure compliance with international safety standards.
Programmable program controller: Schneider PLC, with fast operation and processing speed and stable performance. The best among small PLCs.
Servo system: Delta servo, which has high-speed, high-precision transmission performance, the maximum overload current of the motor can reach 300%, and the torque is large.
The main saw motor: adopts the Beide brand 5.5KW motor produced by Siemens (China), which has the characteristics of high protection level and stable operation.
10-inch touch screen design makes the operation easier and more intuitive.
Sensor: Machine use German brand: SICK sensor, which has the characteristics of high recognition and fast response, and is in an absolute leading position in the field of global optical sensors.

Machine Parameter:

Saw blade diameter	Φ405
Max.cutting size	75125(50180)mm
Max.cutting thickness	75mm
Min.input length：	350mm
Saw spindle speed	4000rpm/min
Saw spindle motor	5.5kw
Servo feeding motor	4.5kw*2
Number of upper pressure wheel	6
Number of down feeding rollers	6
Feeding conveyor width	200mm
Machine size	13000mm1400mm1550mm
Max.feeding speed	100m/min
Max cutting speed	25m-30m/min
