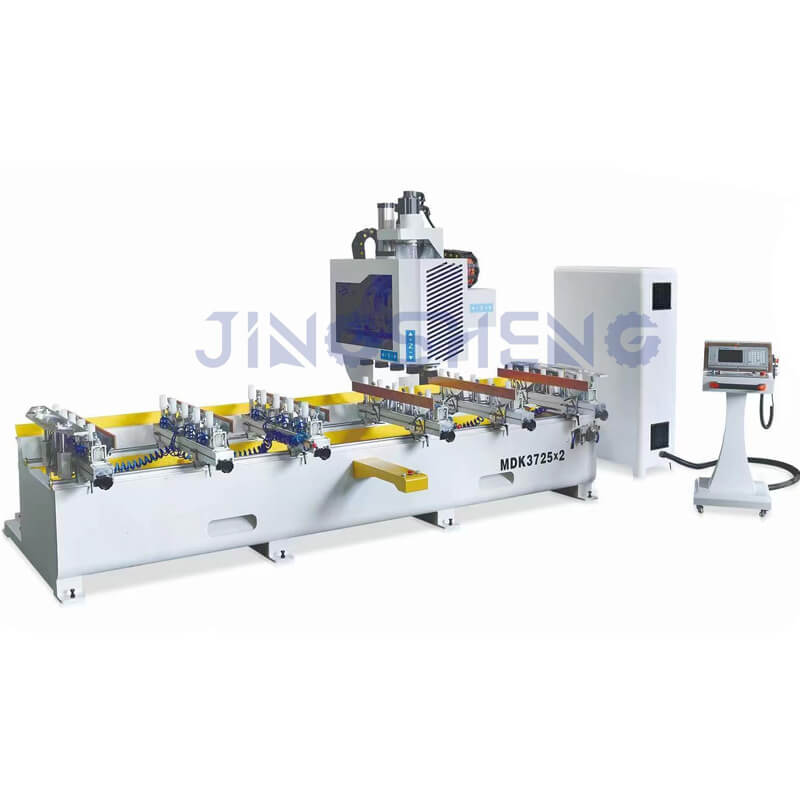

CNC Mortising Machine MDK3725X2

Machine features and functions:

Mainly use in furniture drilling, tenon and groove processing.

1. Easy to operatehigh precision, safe and reliableeasy to maintain.

2. The processing range is wide, and it can process a variety of mortise and groove types.

3. The tenon and groove are processed by the high-speed spindle with high quality, double-station design and high processing efficiency.

4. Using Taiwan CNC system, it can be directly imported into the program for processing.





Machine Parameter:

Model
MDK3725X2
X- Axis Max.Travel
2900mm
Y- Axis Max.Travel
300mm
Z- Axis Max.Travel
250mm
Air Pressure
0.8Mpa
Spindle Speed
18000r/min
Total Motor Power
26kw
Machine Sizes
4400x2300x2200mm
Machine Weight
2900kgs
