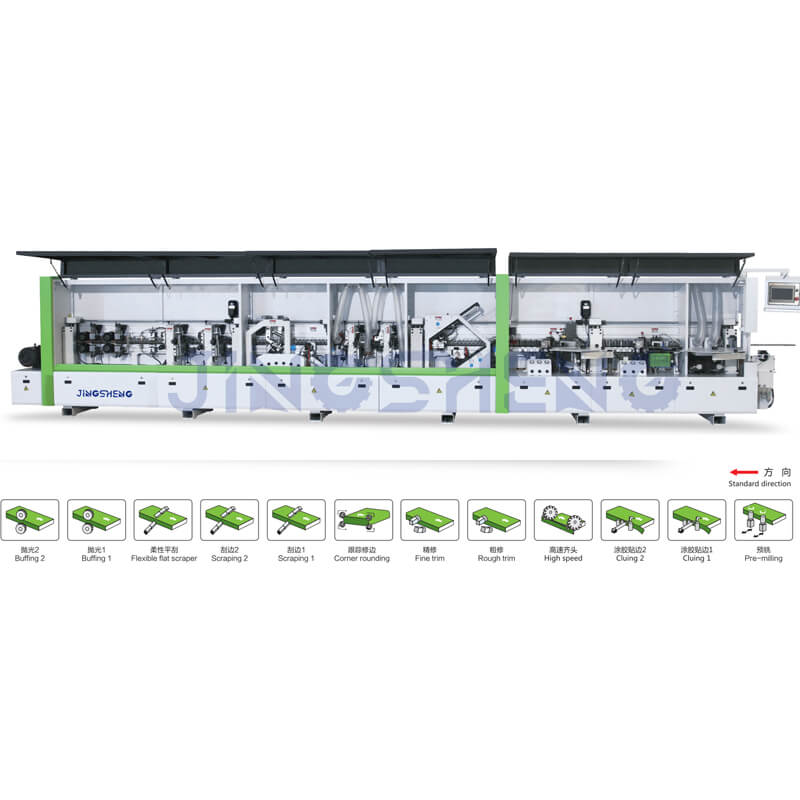

Automatic Edge Banding Machine LZJ-668JL

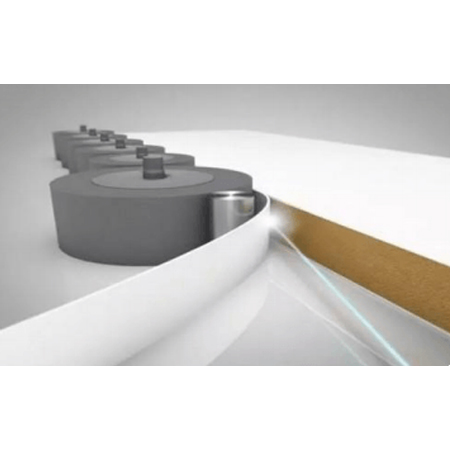

  1. Double guide rail front and Back repair
  2. One large pressing wheel and five small pressing wheels combined to fix

         the edge, (rough repair, finishing, scraping),

  1. Feeding speed 12-20m/min, corner rounding, automatic lubrication, electric

         pressure material lifting.

Machine Parameter:

Model

LZJ-668JL

Panel width

>80mm

Panel Thickness

10 ~ 60mm

Edge Thickness

0.4 ~ 3mm

Feeding Speed

12~16~20m/min

Panel Length

>150mm

Working Pressure

0.6Mpa

Total Power

25.3kw

Overall Size

9500x1000x1800mm

Weight

4000kg
